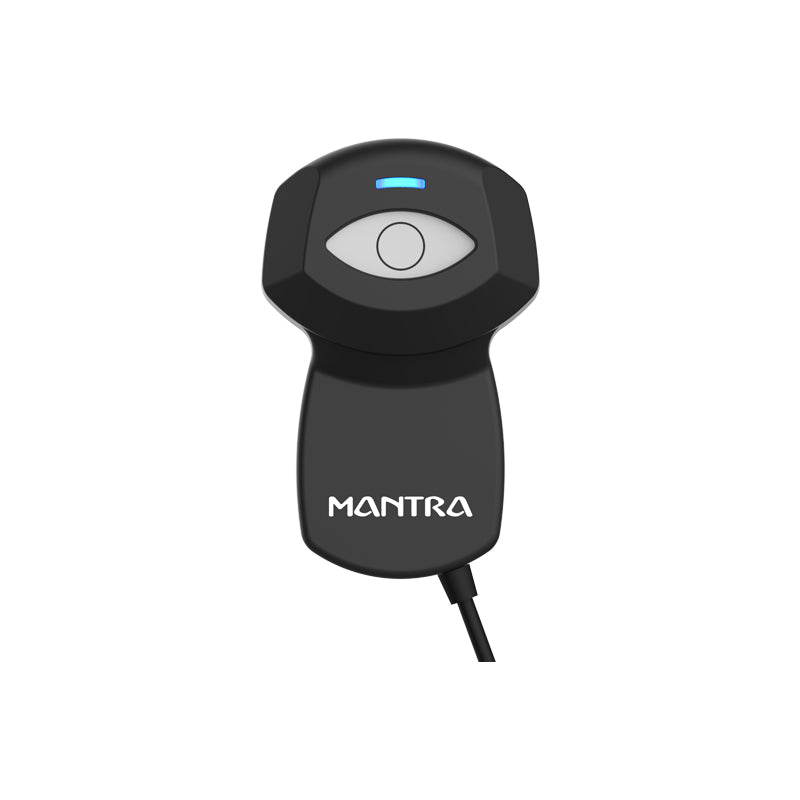

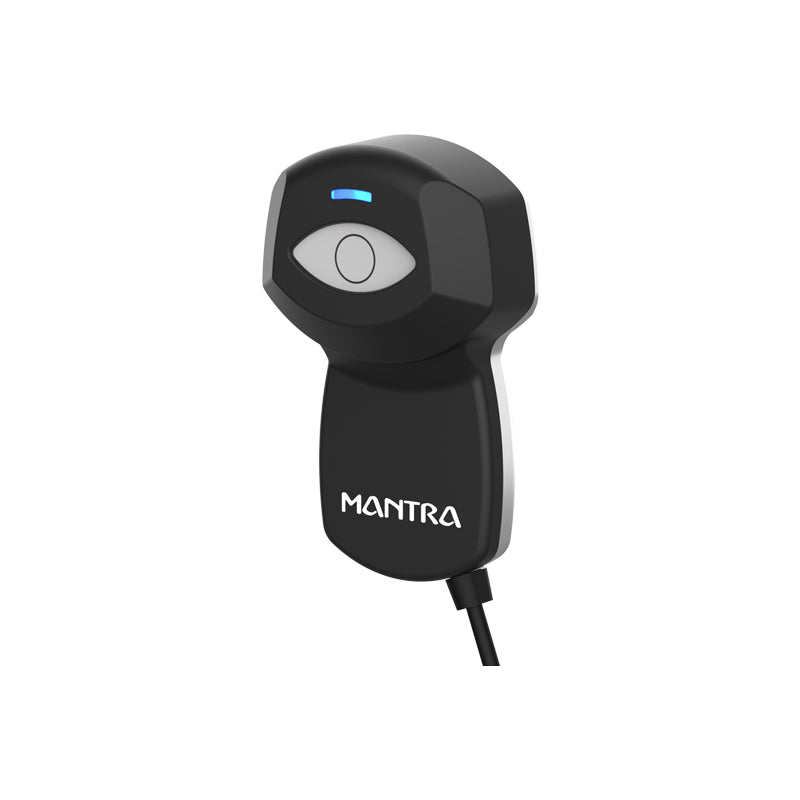

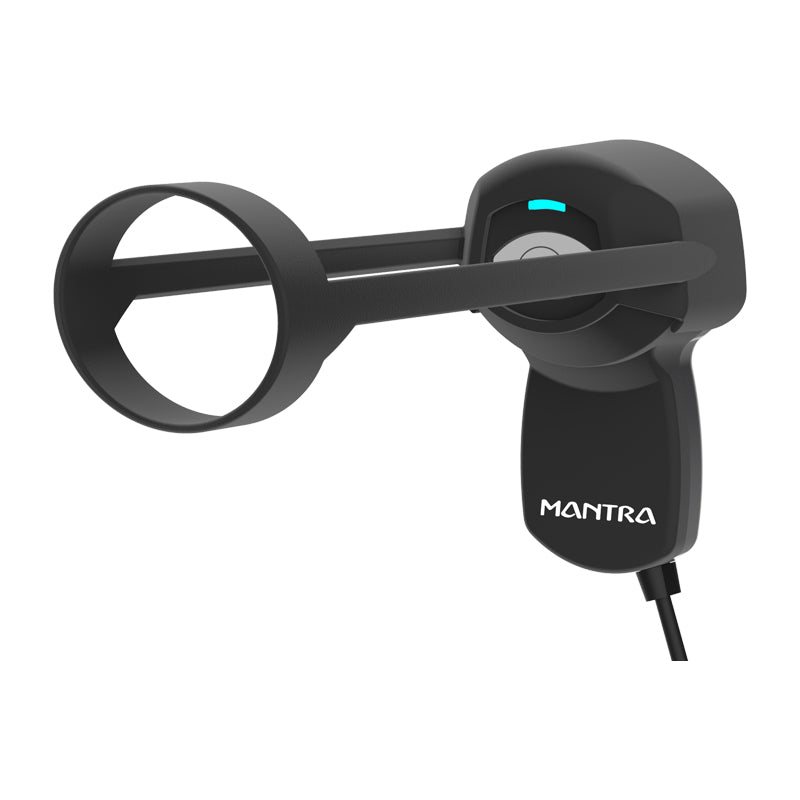

Mantra MIS100V2 Single Iris Scanner
Mantra MIS100V2 Single iris scanner is commonly used in identity scanning features where KYC authorization needed. product used on Aadhar Centre, Banking, Hospitals, Security Services .
Mantra Mis 100 V2 SINGLE IRIS Scanner:
Morpho Single IRIS Scanner is extensively used for identity applications like Aadhar Authentication, Banking Applications and Access Control Applications. Single IRIS Scanner for Aadhar is best for Aadhar Kit to scan and enhance the data effectively.
With the MIS100V2 quality system, it helps efficiently in identifying poor IRIS images and make adjustments based on inbuilt LED indications. With the presence of High Resolution, Aadhar Fingerprint Scanner creates quality Images.
MIS100V2 proprietary distance sensing and focus analysis technology and gives fast auto capture capabilities.Morpho Single IRIS Scanner has outstanding scanning performance which provides faster scanning, larger depth of field, wider scanning angle and zero error rates.
PRODUCT DESCRIPTIONS:
MIS100V2 is high quality USB IRIS Sensor for IRIS Authentication to access
desktop or network security. Single IRIS Sensor MIS100V2 can be used
extensively for identity applications like Aadhaar Authentication, Banking
Applications and Access Control Applications.
MIS100V2 quality algorithm can easily identify poor quality IRIS images and can be adjusted easily based on inbuilt LED indications. MIS100V2 works on proprietary distance sensing and focus analysis technology which gives it fast auto capture capabilities.
APPLICATIONS:
- Applications
- PC/Network Security
- Time and Attendance
- Smart Card Application
- AFIS
- Health & Medical
- UIDAI
- Jeevan Pramaan
- AEBAS
- Skill Development
- NREGA
- PDS
FEATRURES:
- Plug & Play USB 2.0 with
- High Speed Interface Lower FAR and FRR STQC Certified Product
- Supports Android
- Operating Systems
- Supports Windows
- Operating Systems
- Supports Linux
- Operating Systems
TECHNICAL SPECIFICATIONS:
- Spatial Resolution
- Pixel Resolution
- Image Margins Left & Right
- Top & Bottom
- Imaging Wavelength
- Pixel Depth
- Output Image
- Capture Mode
- Capture Time
- Safety
- Health-Safety
- ESD
- Radiated Emission
- Radiated Immunity
- Connectivity
- Operating System Supports
: > 50% @ 1.0 LP/mm
: > 10 pixels/mm
: >= 0.6x IRIS radius
: >= 0.2x IRIS radius
: 700-900 nm
: 8 bits/pixel
: KIND1 to KIND7 with JPEG2000 Compression
: Auto Capture with Built-in Quality Check
: < 2 sec
: Exempt Group per IEC 62471:2006-07
: RoHS Compliant
: Air Discharge+-8 KV, Contact Type +-4Kv
: FCC part15B/IEC:CISPR 22 Class B Standard
: As per IEC/EN 61000-4 3:2006+A2:2010
: USB 2.0
: Windows XP, Win7, Win2008, Android, Linux, Embedded Linux
Parameters Specification
